Main Features
1. This high speed filling line is suitable for filling 10-100ml specification products of pesticides;
2. The filing speed of the entire line is 12000 bottles/hour, which can be customized according to needs;
3. The average filling accuracy is + 1 gram, with accurate accuracy, reducing unnecessary waste;
4. The entire line is made of stainless steel material, with a beautiful and elegant appearance and highaesthetic value, making it a popular attraction for customers to visit.
Applicable Product
Main Parameters
|
Power supply |
AC380V, 50/60HZ |
|
Whole line power |
About 48KW |
|
Air pressure |
(0.6-0.7) MPa, dry, clean and stable gas source |
|
Single line gas consumption |
0.9m ³/ min |
Highlights Of Our Intelligent Filling Line
- Bottle Unscrambler
- Filling - Capping Machine
- Intelligent Labeling Machine
- Automatic Case Packer
- Robot Palletizer
Bottle Unscrambler
LPG Intelligent Workstation Bottle Unscrambler:
Applicable bottle type: diameter 20-60mm, height 50-150mm.
Production capacity: s12000 bottles/hour

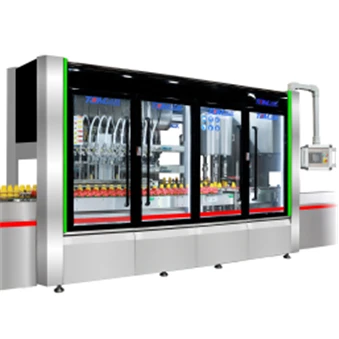

Filling - Capping Machine
GXXC-16-12 Intelligent Rotary Tracking Fillingand Capping Integrated Machine:
Applicable bottle type: diameter 20-60mm, height50-150mm
Production capacity: 10-100mls 12000 bottles/hour
Intelligent Labeling Machine
TBJ-10Y-A Intelligent Labeling Machine:
Size range: diameter 20-60mm Label height: (30-90)mm, length: (40-140) mm
Production capacity: s 12000 bottles/hour
Labeling accuracy: ± 1mm

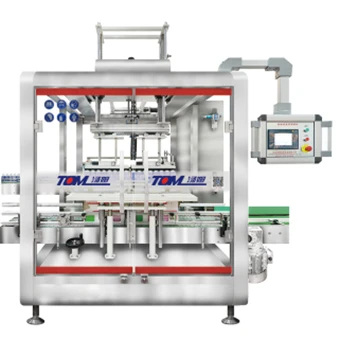

Automatic Case Packer
ZZP-2NA Automatic Case Packer:
Applicable bottle type: diameter 20-60mm. Height 50-150mm.
Carton specifications: length300-500mm, width 200-400mm, height 100-300mm
Capacity: 6-8 boxes/min

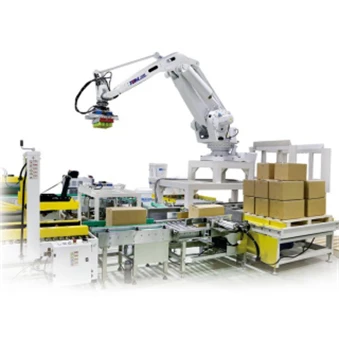

Robot Palletizer
Robot Palletizer:
Maximum payload: 20Kg
Capacity: 4-8 boxes/min
Working radius: 1600mm
Vertical distance: 2100mm
Product Examples Of The Machine
Bottle Unscrambler
View More
GXXC-16-12 Filling - Capping Machine
View More
Checkweigher
View More
Induction Sealer
View More
Aluminum Foil Leak Detection Machine
View More
Laser Marking Machine
View More
Label CCD Detection
View More
TBJ-10Y-A Intelligent Labeling Machine
View More
QR Code Scanning and Label CCD Detection
View More
Carton Erector
View More
Automatic Cardboard Placing Machine
View More
ZZP-2NA Automatic Case Packer
View More
Carton Sealer
View More
Check Weigher and Rejector
View More
Strapping Machine
View More
Robot Palletizer
View MoreShipping Logistics
