Main Features
Security: Digital interactive frames ensure safe operation, and machine interlocking ensures production safety; Comprehensive testing ensures the safety of finished products.
Environmentally friendly: Digital interactive outer frame for odor removal and convenient connection: Effective collection of dripping and leaking; Circulating cleaning shuttle to assist in production replacement.
Intensification: The overall layout of the line is compact and occupies less land. With multiple machines, it is more convenient. The operation of the entire line only requires one person.
Digitization: All devices are powered by PLC+HML; Leave software interfaces for each machine; Digital interactive bounding boxes showcase technological advancements.
Intelligence: Robots+vision+sensing+servo+PLC+HMI+AGV achieve 80% one click production change on the entire line.
Flexibility: Bottle sorting machine, robot box erector, case packer, palletizing, tracking filling, servo adjustable railing, fast specification change and strong adaptability.
Efficient: Changing production takes only 20 minutes: the maximum production capacity of the entire line is 7200 bottles per hour.
Main Parameters
|
Power supply |
AC380V, 50/60HZ |
|
Single line power |
Approximately 67KW |
|
Gas source pressure |
(0.6-0.7) MPa, dry, clean, and stable gas source |
|
Single line gas consumption |
1.2m ³/ minute |
Applicable Product
Applicable bottle type: diameter 40-95mm, height 80-260mm

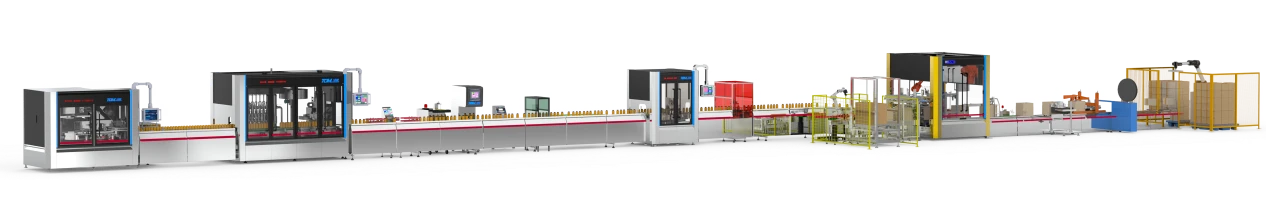

Highlights Of Our Intelligent Filling Line
- Bottle Unscrambler
- Filling - Capping Machine
- Positioning Labeling Machine
- Intelligent Case Packer
- Robot Palletizer
LPW-7A Automatic Bottle Unscrambler
● Bottle application: height 80-260mm,diameter 40-95mm
● Capacity: 3600-10000 BPH (50-1000ml)

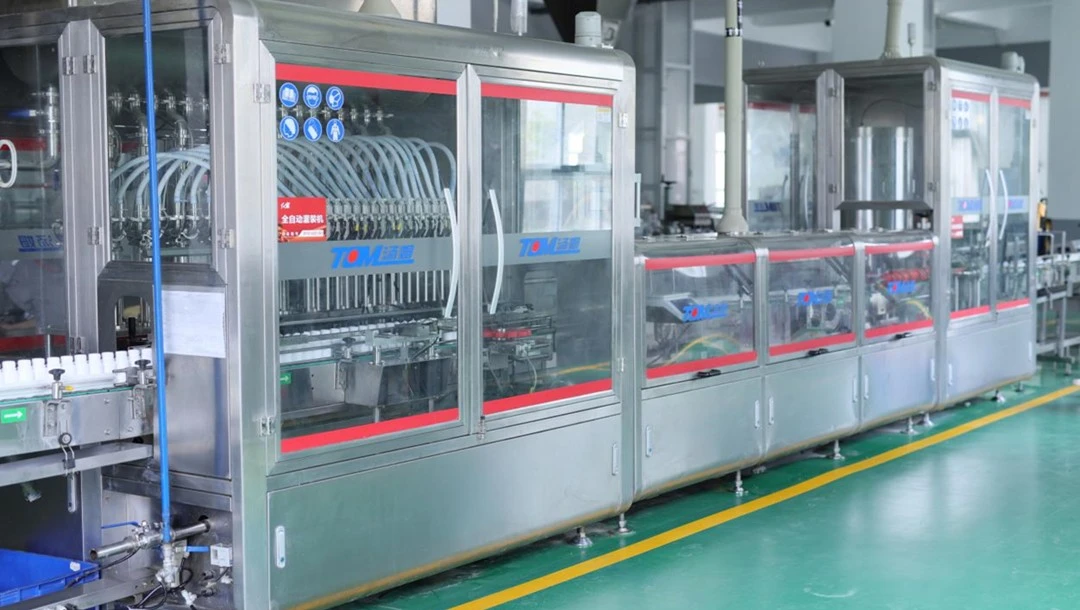

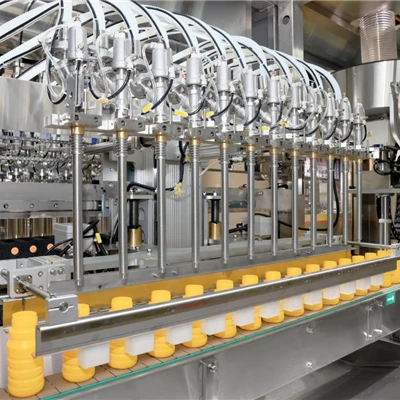

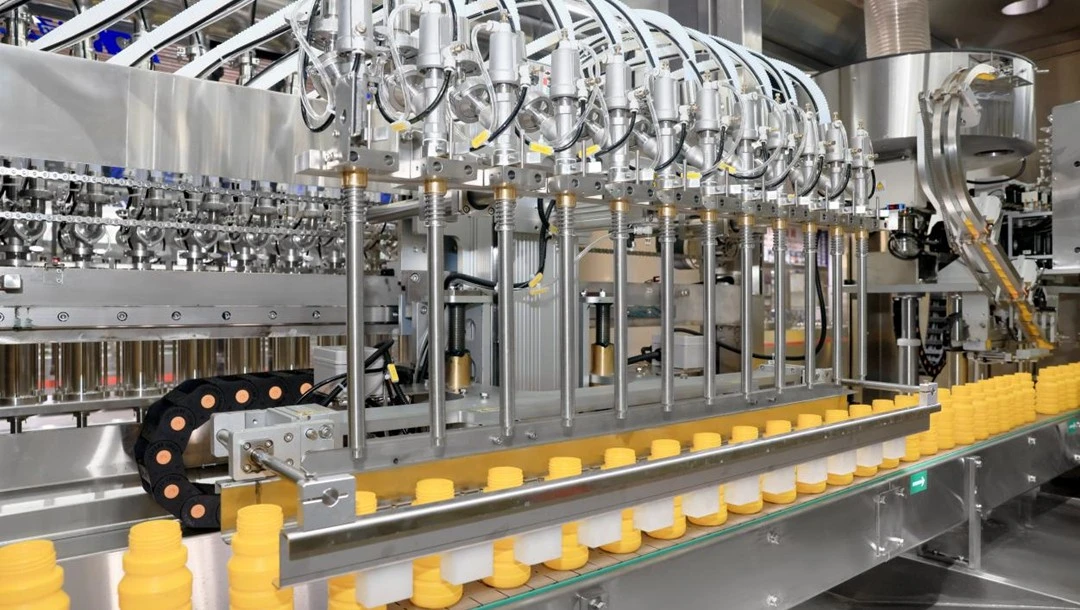

GXZG-12-3 Intelligent Tracking Filling and Capping Integrated Machine
● Applicable bottle type: height 80-260mm, diameter 40-95mm
● Capacity: 50-1000ml ≤ 3600-7200 bottles/hour
● Filling accuracy: within 200ml ± 1g; Within 300ml-500ml, ± 2g; 1000ml ± 4g
TBJ-1DY Intelligent High-precision Positioning Labeling Machine
● Scope of application: Round bottle diameter (40-95) mm, height (80-260) mm
● Label height: (50-580) mm, length: (40-140) mm
● Production capacity: ≤ 7200 bottles/hour
● Labeling accuracy: ± 1mm
Intelligent Robot Case Packer
● Applicable bottle type: diameter 40-95mm, height 80-260mm
● Carton specifications: length 300-500mm, width 200-400mm, height 100-300mm
● Capacity: 4-8 boxes/minute
● Gripping type can be customized according to customer's package

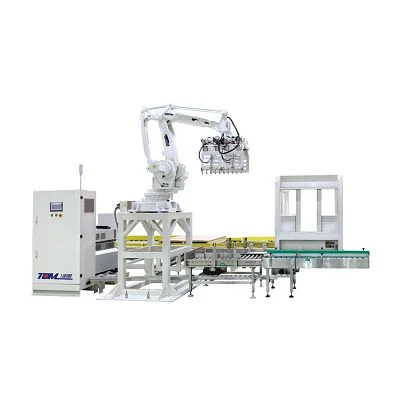

Robot Palletizer
● Maximum payload: 20Kg
● Capacity: 4-8 boxes/min Working radius: 1600mm Vertical distance: 2100mm
