Main Features
1. This line is suitable for filling pesticide products with specifications of 100-1000ml;
2. Quick template switching for the entire line, one click dose change, 20 minute production change;
3. The filling speed of the entire line is 7200-12000 bottles/hour, which can be customized according to needs;
4. The average filling accuracy is ± 2 grams, which is accurate and reduces unnecessary waste;
5. Dynamic online weighing technology, unaffected by various characteristics of materials;
The entire line is made of stainless steel material, with a beautiful and elegant appearance and high aesthetic value, making it a popular attraction for customers to visit.
Main Parameters
|
Power supply |
AC380V, 50/60HZ |
|
Whole line power |
60KW |
|
Air pressure |
(0.6-0.7) MPa, dry, clean, and stable air source |
Applicable Product
Applicable bottle type: diameter 40-95mm, height 80-260mm
Highlights Of Our Intelligent Filling Line

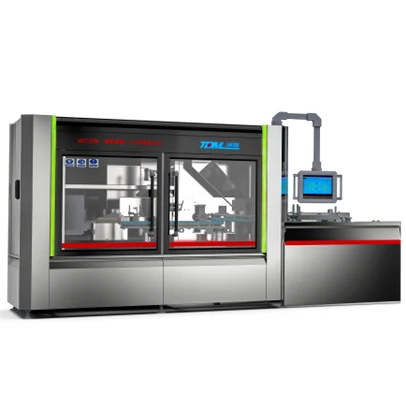

- Bottle Unscrambler
- Filling - Capping Machine
- Labeling Machine
- Intelligent Robot Case Packer
- ABB Robot Palletizer
Intelligent Servo Horizontal Bottle Sorting Machine
One click Switch Specifications
● Applicable bottle type:Height 80-260mm,Diameter 40-95mm
● Production capacity: ≤ 12000 bottles/hour
GXXC-24-8 Intelligent Rotary Weighing Filling and Capping Integrated Machine
● Applicable bottle type: height 80-260mm, diameter 40-95mm
● Production capacity: 100ml ≤ 12000 bottles/hour; 1000ml ≤ 7200 bottles/hour
● Filling accuracy: ± 1g
Intelligent High-speed Rotary Double Label Station Labeling Machine
Intelligent High-speed Rotary Double Label Station Labeling Machine
● Applicable scope:Height 80-260mm, diameter 40-95mm
● Label: Height (50-180) mm, Length (50-300) mm
● Production capacity: ≤ 12000 bottles/hour
● Labeling accuracy: ± 1mm
Intelligent Robot Case Packer
● Applicable bottle type: diameter 40-95mm, height 80-260mm
● Carton specifications: length 300-500mm, width 200-400mm, height 100-300mm
● Capacity: 6-12 boxes/minute
● Gripping type can be customized according to customer's package
ABB Robot Palletizer
● Maximum payload: 110KG
● Reset positioning accuracy: 0.1mm
● Reach distance: 2400mm
